STARRETT Back Plunger Dial Indicator: 0 to 2.5 mm Range, Continuous Reading, 0-1

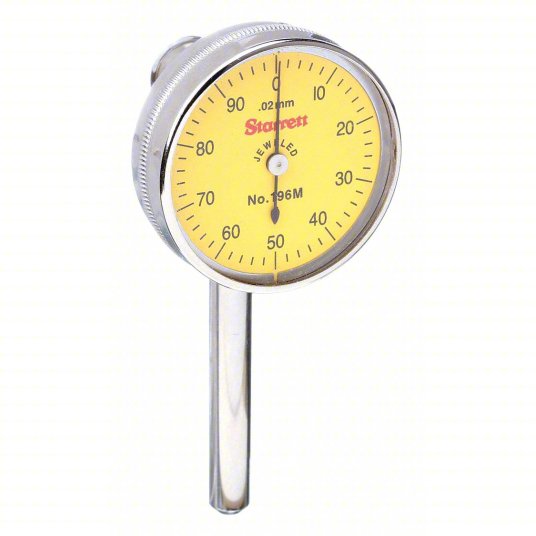

196MB1 Universal Back Plunger Dial Indicator
FEATURES
- One of the most versatile indicators available
- Accurate and reliable
- Simple to operate
- Rugged, with few moving parts
- Smooth in operation
- For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
- Shank diameter is 1/4" (6.3mm)
- Indicator with 3 Contact Points and Adaptor Only
SPECIFICATIONS
- Range (mm): 5mm
- Graduations (mm): 0.02mm
- Dial Reading: 0-100
- Attachments: Indicator with 3 Contact Points and Adaptor Only
- Dial Color: Yellow
The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). Antimagnetic models are also available - (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. 0-100 with 3 Contact Points and Adapter only This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.
Product Details
Catalog PageN/A
BrandSTARRETTRange0 to 2.5 mmGraduations0.02 mmAccuracy±0.02 mmLong Form Calibration CertificateNoBack TypeNon-Removable FlatDial ColorYellowDial Reading0-100Dial Size1.69 inDimension TypeMetricMaximum Measurement - mm5 mmMinimum Measurement - Inch0 inMinimum Measurement - mm0 mmNumber of Indicators1Operation TypeBack PlungerRange per Revolution2.5 mmReadingContinuousBearing TypeJeweledContact Point Dia.0.484375 inContact Point ShapeBallIncludes CaseNoShock ResistantNoStem Dia.0.25 inUNSPSC41116501Country of OriginUSA (subject to change)
