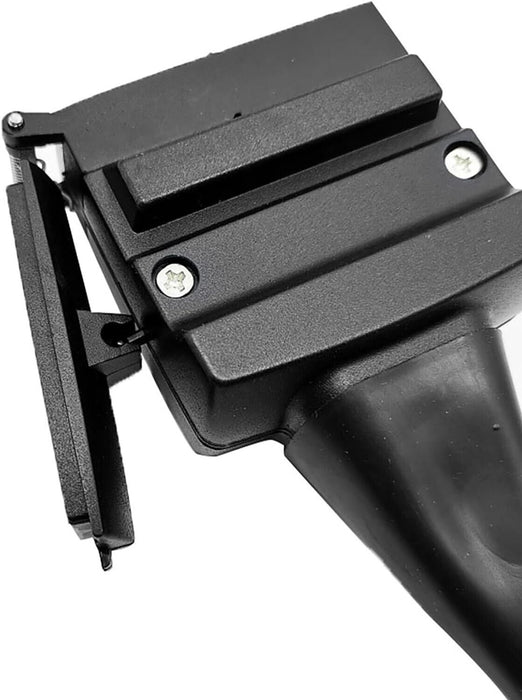

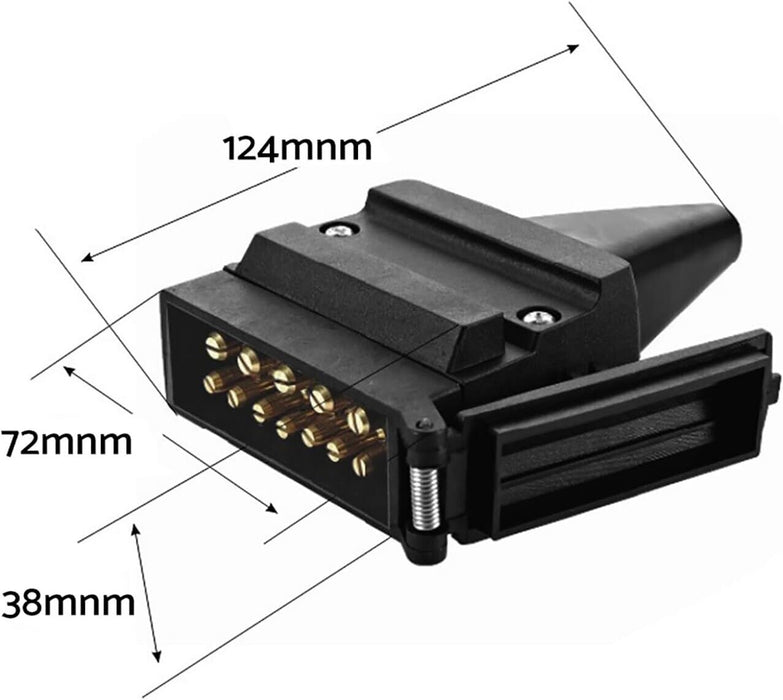

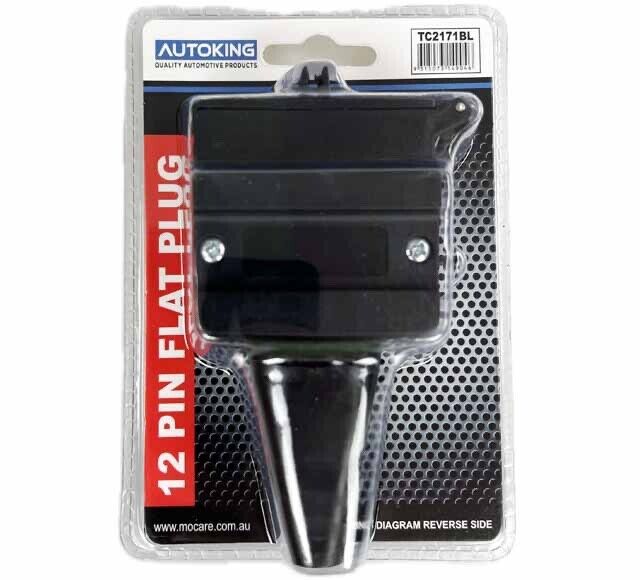

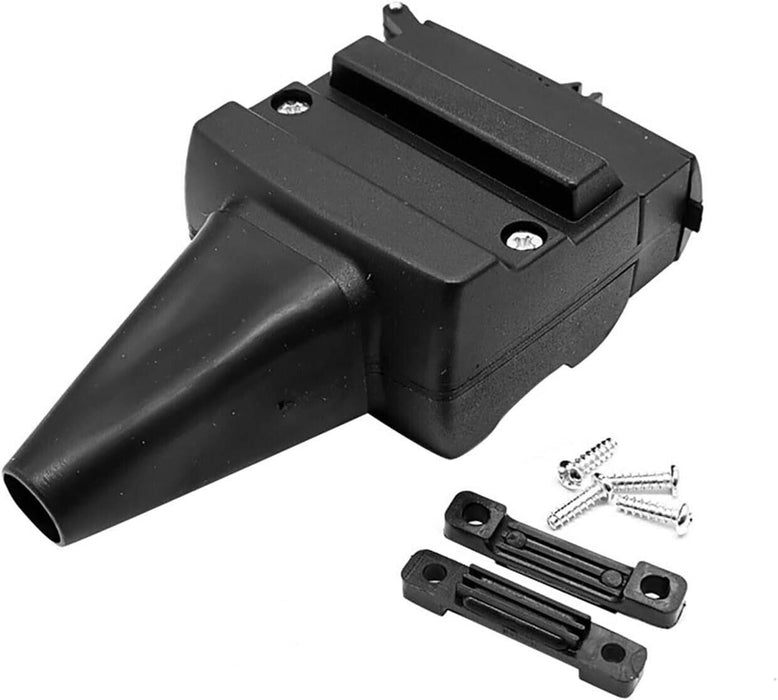

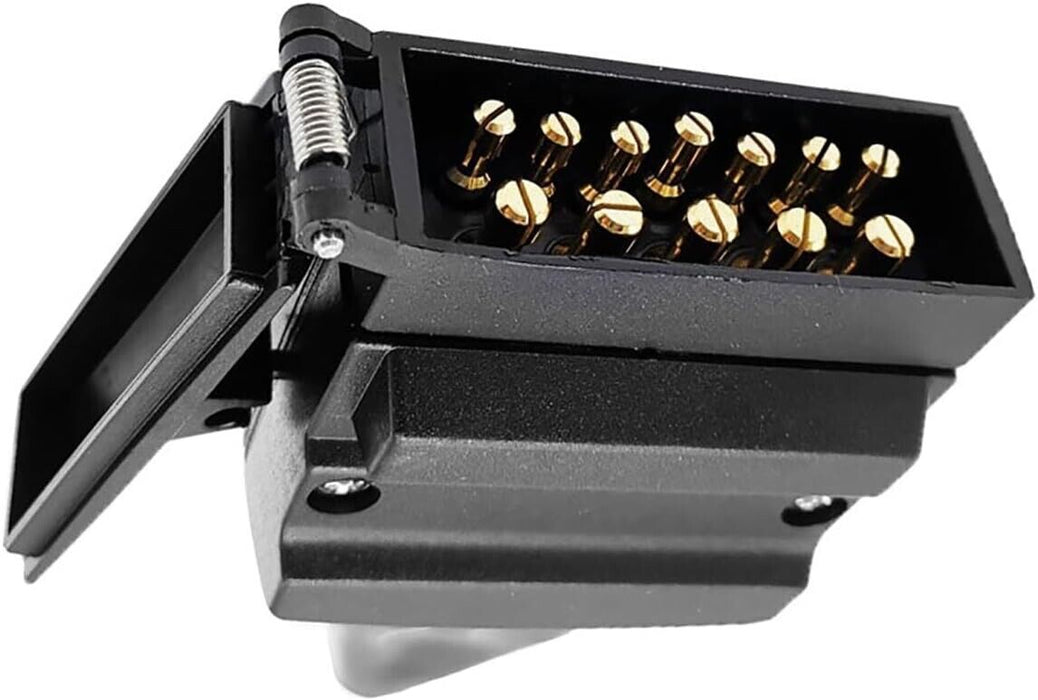

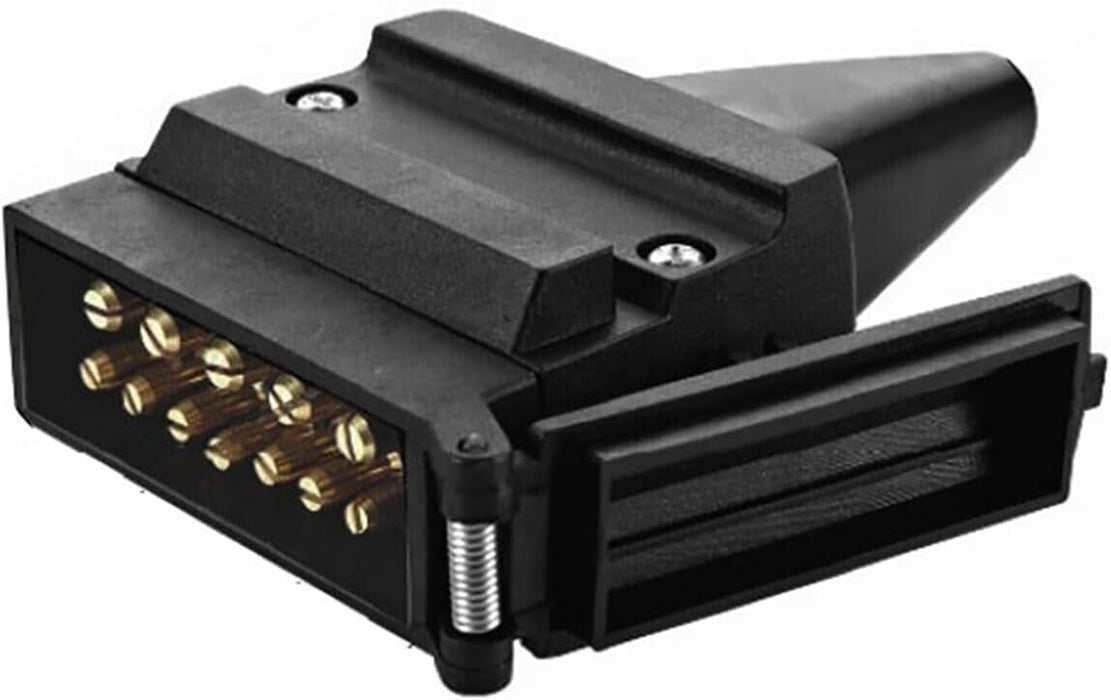

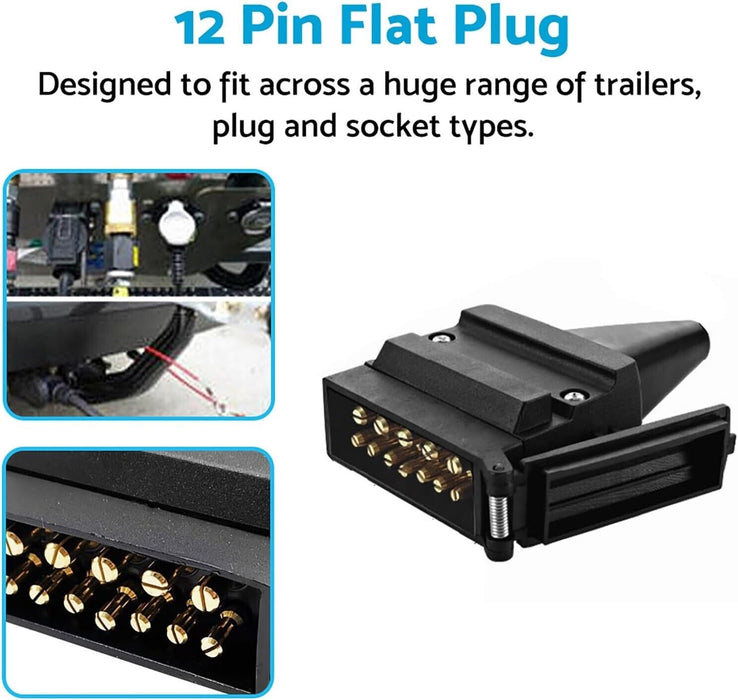

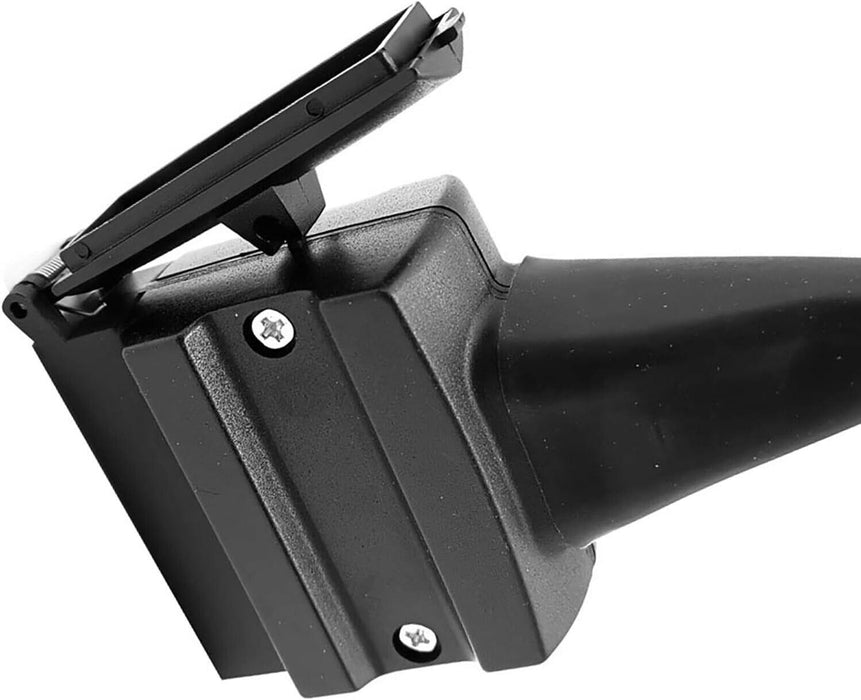

AUTOKING 12 Pin Flat Connector Plug Suitable For Trailer Caravan Boat Vehicle
Original price
$17.99
-
Original price
$17.99
Original price
$17.99
$17.99
-
$17.99
Current price
$17.99
Specification：
Repalce Part Number: 82171BL
Pin: 12P
Material: Nylon+Copper
Voltage: 12V
7 Pole amp rating per pole 15A at 12V
5 Pole amp rating per pole 35A at 12V
Wiring Configuration：
1 Left hand turn-yellow
2 Reverse-black
3 Earth-white
4 Right hand turn-green
5 Electric brakes-blue
6 Stop-red
7 Tail, clearance, side markers-brown
8 Battery supply-orange
9 Auxiliaries-pink
10 Earth-white
11 Rear fog lamp-grey
12 Auxiliaries-violet
Package Including：
1x 12 Pin Flat Plug
Note: Aftermarket Products, NOT Genuine Parts.
