8pc CR-Common Rail Diesel Injector Repair Kit Injector Ball Valve Lapping &Guide

 to loosen and remove the internal fixings of the injectors

- for professional injector repair

- for injectors: Bosch, Denso and Siemens

- for professional injector repair

- comprehends:

- 3 injector valve tools with central adapter

- 1 bit, drive 1/2'', male hexagon 21 mm, hexagon 10 mm - internal Ø with hole 6.6 mm

- 1 bit, drive 1/2'', male hexagon 21 mm, hexagon 10 mm - internal Ø with hole 7,6 mm

- 1 socket, 1/2'' connection, 8 points for Bosch-CR injectors

- 1 bush, male hexagon 17 mm, with three deflection pins for internal valve seats of Denso Common Rail injectors

- 1 centering tool, 1/2'' attachment, with 4 teeth to open the internal ring nut of Siemens Common Rail injectors

- material: chrome vanadium steel

- female square drive: 1/2'' (12.5 mm)

An essential kit for CR Diesel Injector repair. Includes special tools to loosen and remove the injector's internal fixings.

• Applications include: Bosch, Denso & Siemens injectors.
• Includes the Injector ball valve lapping tools and guide.

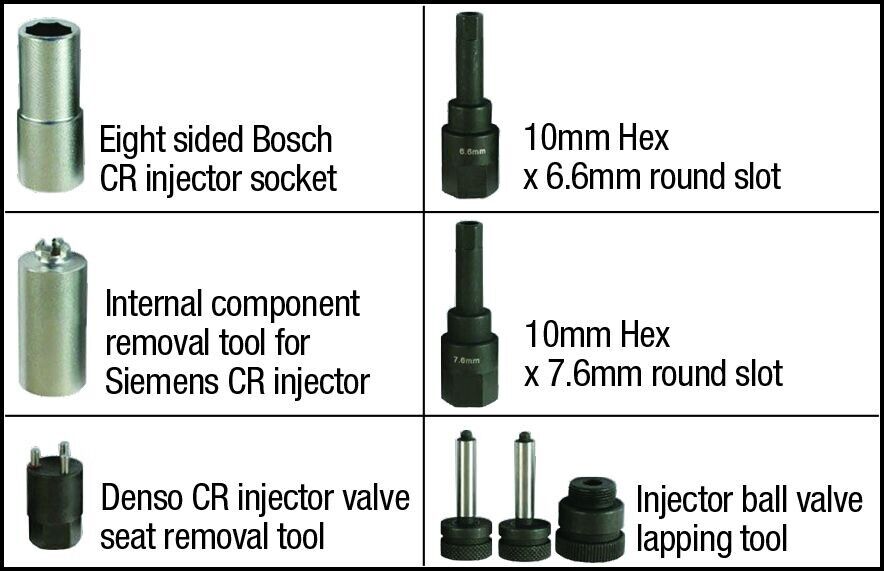

• 3 x injector ball valve lapping tools, 10mm Hex x 7.6mm, Denso CR injector valve seat removal tool, 8 sided socket for Bosch CR injectors, internal fixing removal tool for Siemens CR injector.
• Manufactured from chrome vanadium and steel.

to loosen and remove the injector's internal fixings for professional repair of injectors applicable for Bosch, Denso and Siemens injectors

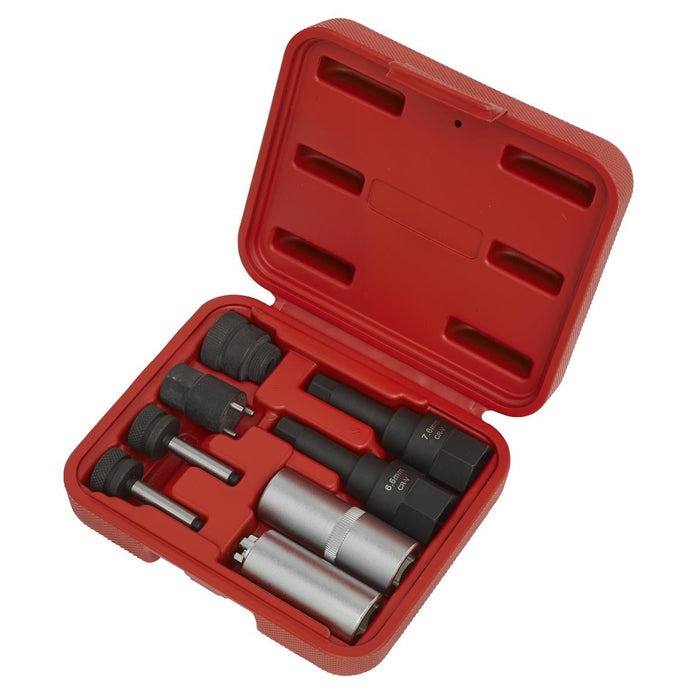

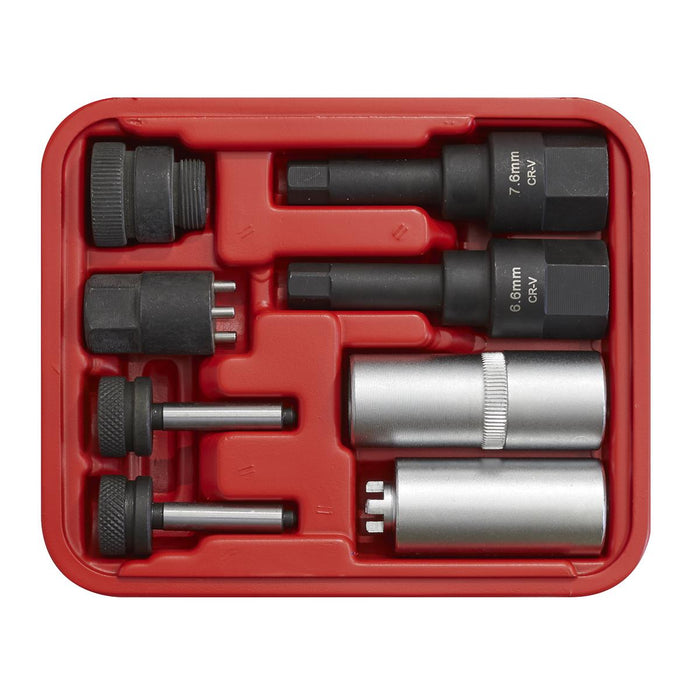

Scope of delivery:

3 Injector ball valve lapping tools incl. center adapter1 bit socket, 12,5 mm (1/2) drive / 21 mm external hexagon, internal hexagon (with hole) 10 mm - Inner Ø (tamperproof) 6,6 mm1 bit socket, 12,5 mm (1/2 ) drive / 21 mm external hexagon, internal hexagon (with hole) 10 mm - Inner Ø (tamperproof) 7,6 mm1 socket, 12,5 mm (1/2) drive, 8-pt. for Bosch-CR-injectors1 socket, 17 mm external hexagon, with three drift pins for internal valve seats of Denso Common Rail injectors1 centering device, 12,5 mm (1/2) drive, 4 teeth socket to open the internal split nut of Siemens Common Rail injectors
