As global environmental regulations for automobiles become increasingly strict, many car manufacturers have adopted direct fuel injection technology, and Honda is no exception. Honda's Earth Dreams Technology is its own in-house direct injection system. The advantage of direct injection lies in its ability to precisely control fuel injection timing, reducing gasoline usage and achieving more complete combustion, thereby lowering emissions to meet regulatory requirements.

🚗 At this point, you might think today’s topic is about direct injection. Actually, it’s not—though it’s closely related. Today’s real topic is carbon buildup.

🛠️ My Fit has clocked around 70,000 kilometers—just the right time to clean up the valve carbon deposits.

📦 This small bag here contains walnut shell media, which will be used for cleaning.

🌰 Walnut shell media is made from ground walnut shells into fine particles. These don’t damage metal components but can physically blast away carbon buildup using high-pressure air.

😂 Have you heard of the term “Carbon Buildup Dream” as a joke about Honda’s Earth Dreams? I certainly have. While it’s sarcastic, it does vividly describe a real issue—engines equipped with Earth Dreams tend to suffer significant carbon buildup.

🤔 Some may ask: so what if there's a lot of carbon? What is carbon buildup anyway? Simply put, it's a kind of coked residue formed from fuel impurities under high temperatures. These residues attach to engine components, especially the top of pistons and the back of intake valves, and are notoriously hard to clean.

❗If buildup increases, especially on the back of valves, it can affect valve sealing and lead to reduced engine performance. Why does this issue mainly affect Earth Dreams engines and not others?

🧰 Before walnut blasting, the intake manifold must be removed, which is a great time to clean the throttle body as well.

🔧 Once the PCV (positive crankcase ventilation) hoses are disconnected, you can remove the intake manifold. According to the mechanic, the Fit is relatively easy to work on in this respect—the intake manifold is positioned conveniently.

🔍 In my opinion, the issue lies in the combination of direct injection and Honda’s specific engine design. As previously mentioned, carbon usually accumulates on valve backs and piston tops.

💨 In port-injected engines, fuel is sprayed into the intake manifold and mixes with incoming air, so the air passing over the valves carries fuel, which cools the valve slightly and reduces buildup.

🚫 Direct injection engines, however, spray fuel straight into the combustion chamber. This means the valves only see air—without the cooling and cleaning effects of fuel vapor, the valve temperature remains high. That’s one factor.

🔥 The second is the EGR (Exhaust Gas Recirculation) valve design. Because the EGR connects directly to the intake manifold without filtration, fuel and oil vapor-laden gases are drawn back into the intake path. Once this oily vapor hits hot intake valves, carbon buildup is nearly unavoidable.

🪛 After disassembly, be sure to seal open ports to prevent foreign objects from entering.

🧪 So how do we clean this? Yes, there are chemical solutions available in the market. Many reputable brands produce carbon cleaners that dissolve buildup without harming components. However, some lower-quality chemical cleaners can damage other parts, such as the catalytic converter. Thus, chemical cleaning carries some risk.

🧯 If you want to avoid that, there’s a mechanical option—walnut shell blasting, as described in this article.

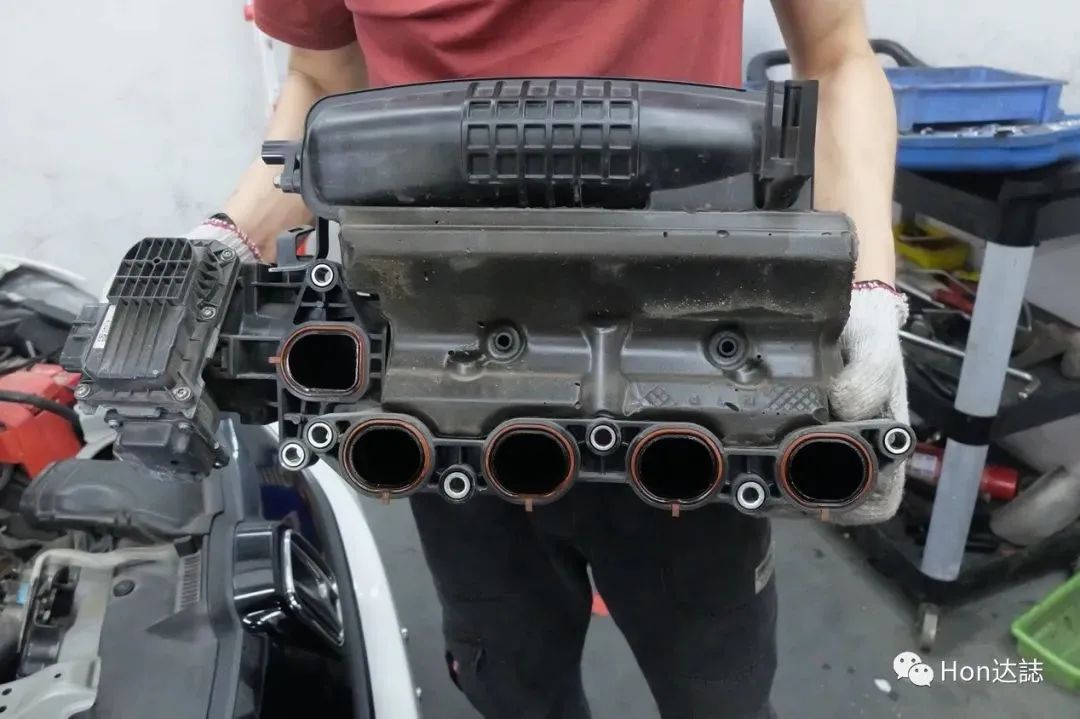

🚪 Here you can see four intake ports and the EGR valve port at the top left. Exhaust gases enter from here, flow through the intake manifold, and re-enter the combustion chamber via the intake valves—making buildup at the valve back practically guaranteed.

🔫 Walnut blasting uses finely ground walnut shells sprayed under high pressure directly onto the carbon buildup areas—primarily the valve backs.

🪣 This method is similar to sandblasting or paint stripping techniques. Since the media is organic and combustible, any residual particles that make it into the engine can be safely burned off without damage. Also, the small particle size allows for precise targeting.

🌀 Special walnut blasting machines combine spraying and vacuuming. As the walnut shells are sprayed, they are simultaneously vacuumed out, along with loosened carbon debris.

🚗 During this process, valves must be fully closed to avoid any media entering the combustion chamber.

⏳ Though time-consuming, this method is highly effective—fine media reaches deep and thoroughly removes buildup.

📸 Here’s a picture of an intake port and valve before cleaning. As you can see, the buildup is quite severe.

🧼 Walnut blasting is a relatively new carbon cleaning method gaining popularity. Recently, many have asked me about the cost. When I tell them, some say it’s too expensive and not worth it. But after trying it, you’ll likely feel differently.

🧩 Preparation includes removing the intake manifold, which varies in difficulty depending on engine layout. While walnut shell blasting uses high pressure, the fine particle size means cleaning takes time.

⏱️ For example, my Fit took nearly 8 hours to complete, with the technician manually operating the tools throughout. This is labor-intensive work.

🔄 Once the manifold is off, the process begins: the technician uses one hand to spray walnut shells onto the valve and the other to vacuum them out.

🔁 After one cylinder is done, the crankshaft must be rotated to position the next cylinder with closed valves.

✅ Here’s the post-cleaning image—the valves and intake ports look pristine.

🧠 Although I’ve focused on Earth Dreams engines in this article, carbon buildup is not exclusive to direct injection engines. Even port-injected engines can develop deposits. It’s just more likely in direct injection designs.

📆 Generally, it’s a good idea to perform a valve cleaning every 60,000–70,000 kilometers.

🚀 Lastly, my impressions post-cleaning: throttle response noticeably improved. It felt similar to the effect of cleaning the throttle body. The engine revs more freely, feels less sluggish when accelerating, and overall, driving smoothness improved significantly.
